Gross weight 9 cubic Flammable explosive diesel truck

  • Gross weight 9 cubic Flammable explosive diesel truck
  • Gross weight 9 cubic Flammable explosive diesel truck
  • Gross weight 9 cubic Flammable explosive diesel truck
  • Gross weight 9 cubic Flammable explosive diesel truck

Gross weight 9 cubic Flammable explosive diesel truck

    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: Waxed before delivery
    Productivity: 10 units everyday
    Brand: CLW group truck
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 10 units everyday
    Certificate: CCC
    HS Code: 8716319000
    Port: Shanghai,Tianjin,Qingdao

Basic Info

Model No.: CLW0806CMQ03

Product Description

Product Description

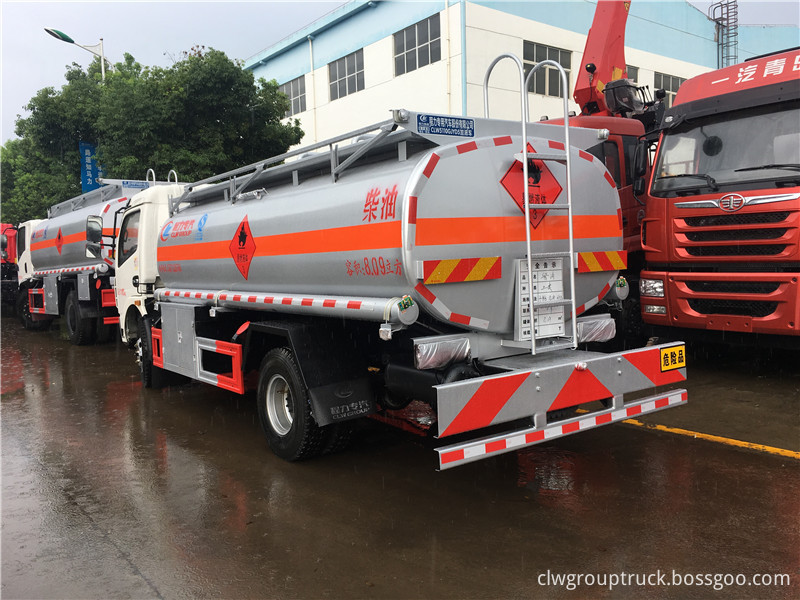

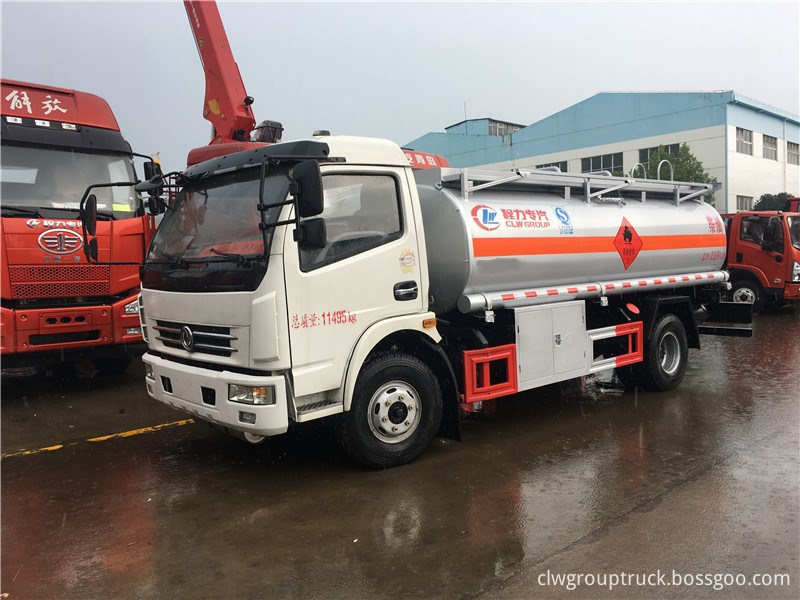

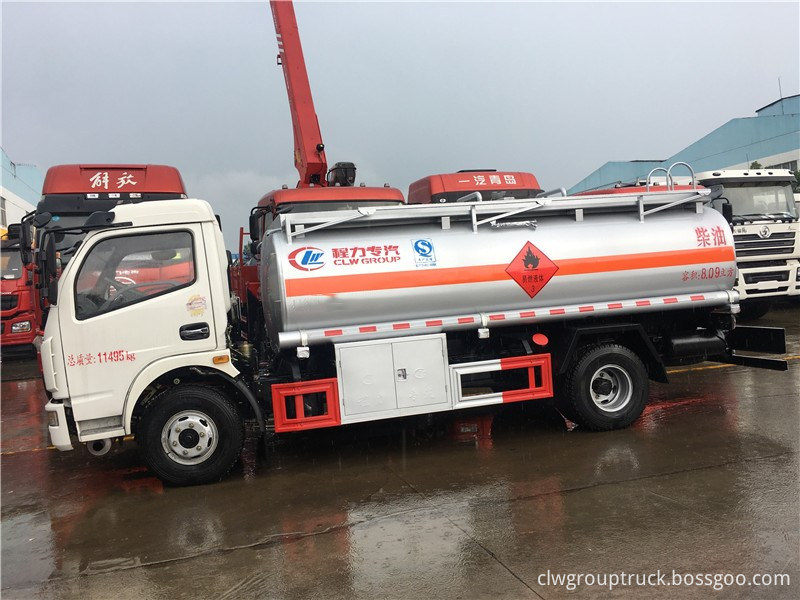

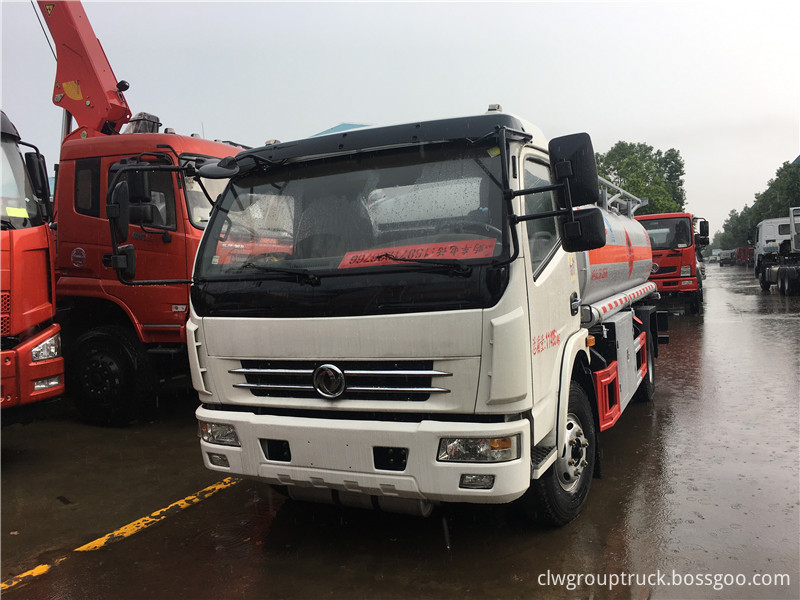

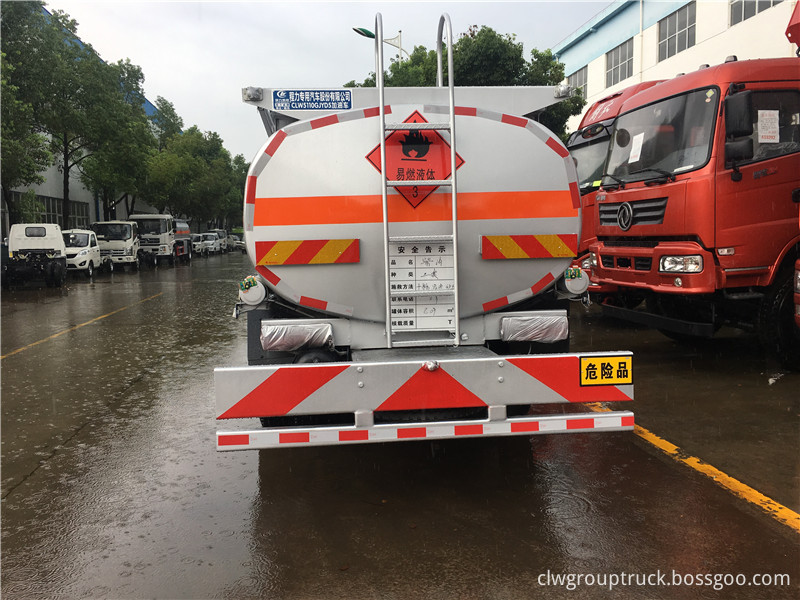

Gross weight 9 cubic Flammable explosive diesel truck

Oil tank truck: also known as mobile oil tanker, computer controlled oil tanker, oil tank truck, oil tank truck, oil tanker, oil tanker, oil tanker, oil truck, mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil, coal tar, etc.). According to different USES and using environment, there are various functions of oil filling or oil transportation, such as oil absorption, pump oil, various kinds of oil loading and distribution. The special parts of oil tanker are composed of tank body, force extractor, transmission shaft, gear oil pump, pipe network system and Other components. The pipe network system consists of oil pump, three-way four-position Ball Valve, two-way ball valve, filter net and pipeline.

[Main technical parameters]

Total mass (kg)

11495

Tank volume (m3)

9.7

Rated mass (kg)

6400

Overall size (mm)

6900X2200X2700

Cube weight (kg)

4900

Cargo size (mm)

××

Approach/departure Angle (°)

19/12

Front/rear suspension (mm)

1210/1890

Number of axes

2

Wheelbase (mm)

3800

Axles load(Kg)

4595/6900

Maximum speed (Km/h)

80

Comments

1. The vehicle is used for transportation of dangerous goods media: gasoline or diesel oil or kerosene, with the chassis selected to install the new front mask, front bumper, and front combination lamps. Protective material :Q235A carbon steel, connection mode: welding is adopted for the protection of left and right sides and the lower back. The dimension of rear protection section (mm):110 * 50, and the height of rear protection from the ground (mm):390. The car can be fitted with an oil pump. Equipped with speed limiting device, speed limiting 80km/h. The car is fitted with a satellite-positioning driving recorder. Only radial tires are used. Only the exhaust pipe front chassis is used. Only the front disk brake and ABS chassis are used.

2. Chassis configuration: yuchai engine yc4s150-48, single row cab, convertible body, 6 gear change box, 2.7t front axle 5.5t rear axle, 188MM girder, 3800MM wheelbase, 825R16 steel tire, front wheel rear drum, electronic extinguishing, speed limiter, ABS of dongfeng original factory, muffler front.

[Chassis technical parameters]

External dimension (mm)

6815×2080,2280×2450

Number of tires

6

Approach / departure angle (°)

24/14

Tire size

8.25-20,8.25R20

Number of spring plate

8/10+7,11/9+7

Front track(mm)

1770,1831,1740,

1845,1769,1903

Fuel type

diesel

Rear track(mm)

1640,1586,1610,1680,1629

Emission standards

Euro V

Engine model

Engine manufacturer

Engine model

Engine manufacturer

CY4102-CE4C

YC4S150-48

Dongfeng chaoyang chaochai power co. LTD

Guangxi yuchai machinery co. LTD

3856

3767

91(123.7hp)

110(150hp)

Diesel Engine TruckDiesel Engine TruckDiesel Engine TruckDiesel Engine TruckDiesel Engine Truck


CLW GROUP TRUCK



CLW GROUP TRUCK produce trucks specially for you, we are the biggest special trucks manufacturer in China, you can find all kinds of the special trucks produced in our factory , and you can also send us the drawings and the requirement details to produced specially for you .


In our factory you can find more than 100 types of trucks such as LPG Truck, LNG Truck, Water Truck, Fecal Suction Truck, Garbage Truck, Refuse Compactor, Sewage Suction Truck, Fuel Tank, High-altitude Operation Truck, Truck with Crane, Dump Truck, Instructional Truck, Van Truck, Semi-trailer, Fire Engine, Spares, Refrigerator Truck, Water Wagon, Tow Truck, Tractor, High-altitude Water Truck, Bulk Cement Truck, Chemical Liquid Truck, Concrete Mixer Truck, ect.


By now, CLW GROUP TRUCK has exported to South America, Europe, Africa, Asia and Other regions and established good cooperation relations with more than 120 countries around the world, On the international market,


Why choose CLW GROUP TRUCK ?

Compared with more than 300 similar special trucks factory ,

1. CLW GROUP TRUCK has the most complete Production qualification Certificates for all kinds of the special trucks . (ISO, IEC, CCC, ASME, Custom certificate, WMI, BV, Manufacturer License of Special Equipment and so on )

2. CLW GROUP TRUCK has the most varieties special trucks (Can produced more than 100 different kinds of the special trucks )

3. China Top 1 Production and sales for Garbage trucks and Water trucks.

4. China Top 1 Production and sales for light duty special trucks.

5. The first one-time pass A2, C2, three kinds of pressure vessel testing For the LPG Trucks and LNG trucks in China.

6. The first one get the low-speed whole truck vehicle qualified assembled manufacturer testing.

7. The first one get the China new world standard fire trucks CCC certificate.

8. The only one manufacturer in Hubei province to achieve qualification for the lorry crane manufacturing License.


Get trucks from our factory that means you have get trucks which meet the world ISO and China's most stringent quality standards CCC certificate, Also you will get our 24x7 service, One year warranty and whole life maintenance.
